HCP Pumps LA Series (Submersible Axial Pump)

HCP Pumps America

LA Series Features

The LA Series contains the following features:

  • High-efficiency motor directly connects to impeller for best energy saving.
  • Strong material and construction, double mechanical seal, epoxy resin cable entry, IP68 waterproof.
  • Shaft and impeller precisely balanced for quiet and long life performance.
  • Standard protector: Miniature thermal protector, mechanical seal leakage detector; other protectors can be applied.
  • 3D-computerized impeller and vanes conductive design for higher pump efficiency.
  • Sacrificial Anodes are highly active metals that are used to prevent a less active material surface from corroding and reduces the rusting corrosion in sea water and increases the lifetime of pump.


General Information

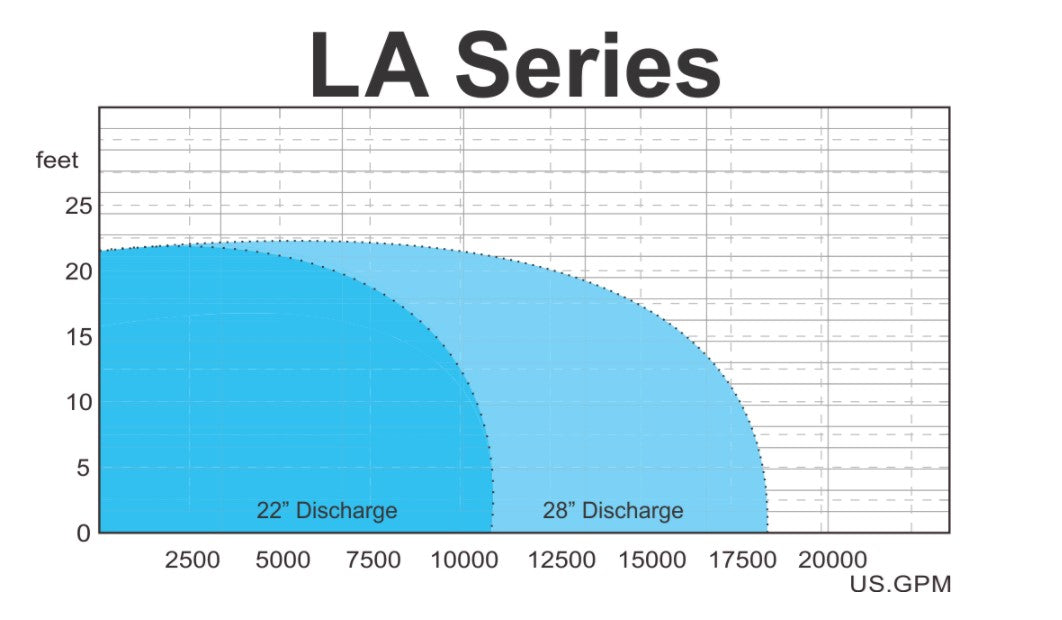

  • Discharge Sizes 22–28”
  • Hp Range 50–100
  • Applications Large Volume Dewatering
  • Motor 10 Pole (50–60Hp) or 12 Pole (75–100Hp)
  • Solids Handling Size 1”
  • Max Head 24 Ft.
  • Max Flow 18400 GPM
