Grindex Bravo-700 Slurry Pump

Grindex



Submersible slurry pumps for pumping fluids with abrasive solids.

The Bravo 700 is extremely wear-resistant thanks to the use of Hard-ironTM and the low shaft speed. Equipped with an agitator to enhance the 'up-stirring' capabilities it is a superior quality pump for all kinds of slurry applications.

Also available in Explosion Proof version.







Pump type

Electrical submersible slurry pump

Classification

IP 68

Max submersion

20 m/66 ft

Cable

20 m/66 ft SUBCAB This pump requires an external starter box

Discharge connection

Connection: Victaulic

Limitations

Allowed pH range: 5.5 - 14

Max liquid temp

40°C/104°F (70°C/158°F on request)

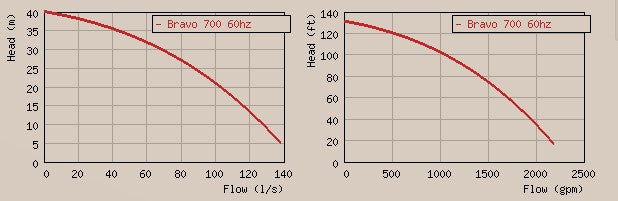

60 Hz Bravo 700
Discharge connection 6"
Rated power P2 [kW/hp] 45 / 60,3
Max. power consumption P1 [kW] 49
Shaft speed [rpm] 1775
Rated current at 230V -
Rated current at 460V 69 A
Rated current at 575V 55 A
Solids passage with agitator [mm/inch] 36 / 1 2/5
Height [mm/inch] 1652 / 65
Diameter [mm/inch] 875 / 34½
Weight [kg/lbs] 613 / 1351
