Grindex Master Inox Stainless Steel Pump

Grindex



With its impressive allowed pH range, from 2 up to 11, it is hard to find an application that can't be handled by the Inox pumps. The modular design drives service cost down and at the same time offers the flexibility to change from a Normal pressure pump (N), to a High pressure pump (H). All materials in contact with the liquid are made out of AISI 316 stainless steel or better.







Pump type

Electrical submersible Three-phase

Classification

IP 68

Max submersion

20 meters

Cable

20 meters, SUBCAB: 230V: 4G6mm2 ≥380V: 4G2.5mm2

Discharge connection

N : 4" - hose, ISO-G or NPT H : 3" - hose, ISO-G or NPT

Limitations

pH 2-11

Max liquid temp

40°C

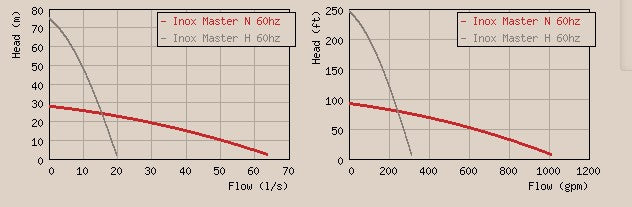

60 Hz N H
Discharge connection 4" 3"
Rated power P2 [kW/hp] 9.7 / 13 9.7 / 13
Max. power consumption P1 [kW] 11 11
Shaft speed [rpm] 3455 3455
Rated current at 230V 30 A 30 A
Rated current at 460V 15 A 15 A
Rated current at 575V 12 A 12 A
Solids passage [mm/inch] 8,5 / 0.35 8,5 / 0.35
Height [mm/inch] 720 / 28½ 720 / 28½
Width [mm/inch] 333 / 13¼ 333 / 13¼
Weight [kg/lbs] 77 / 171 81 / 180
