HCP Pumps AFC Series (Submersible Cutter Pump)

HCP Pumps America

AFC Series Features
The AFC Series contains the following features:


  • International standard design: cable, auto-cut, dry motor, silicon carbide mechanical seal and high grade cast iron offering the highest quality and performance.
  • C type cutter impeller design – to handle sewage solids and/or fibrous substances.
  • Abrasion resistant mechanical seal manufactured with silicon carbide to ensure the best seal effect.
  • The oil lip seal is mounted outside of the seal chamber to stop solid from gathering around seal faces.
  • A full range offering low to high head and flow capabilities. Available with Guide Rail System, which allows for an automatic remote connection and disconnection – without entering the pit.



General Information
  • Discharge Sizes 3”
  • Hp Range 2–5
  • Applications Wastewater and Sewage
  • Motor 2 Pole
  • Solids Handling Size 2″

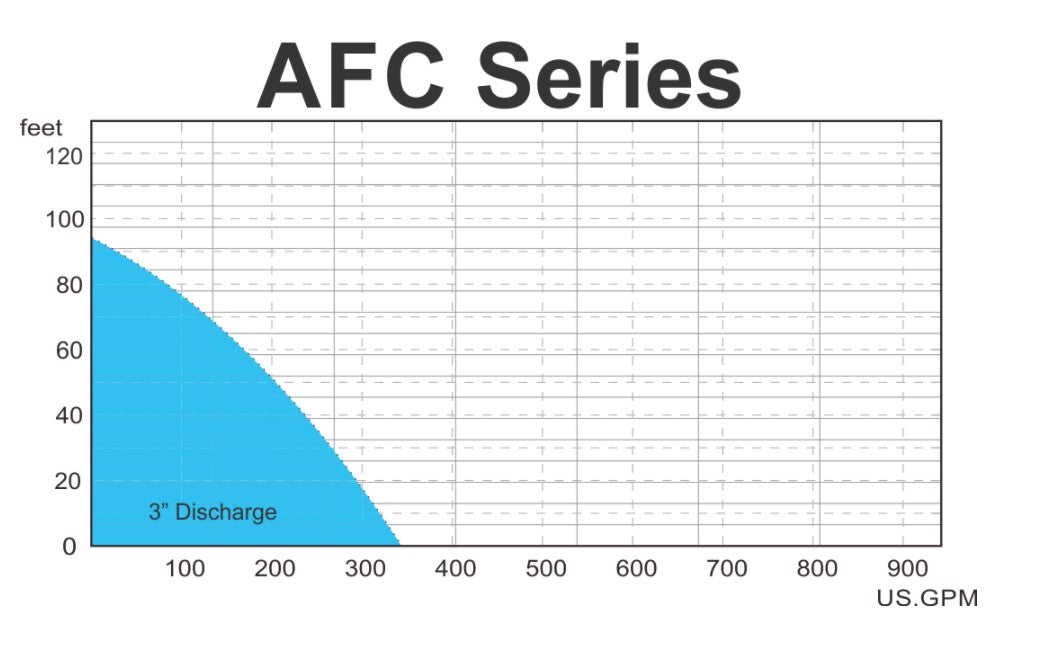

  • Max Head 95 Ft.
  • Max Flow 350 GPM
  • Optional Float switch
