HCP Pumps IC Series (Submersible Dewatering Pump)

HCP Pumps America

IC Series Features

The IC Series contains the following features:

  • Standard design incorporating cable and dry motor, and equipped with thermal Auto-cut to prevent the motor from over heating. Abrasion resistant double mechanical seal and additional oil seal.
  • Superior design of water cooled motor to ensure long life operation with high efficiency and energy savings.
  • For above or below surface water applications, the IC strainer can be easily removed and replaced with a check valve, which allows for de-watering of underground water applications.


General Information
  • Discharge Sizes 2–6”
  • Hp Range 1.5–10
  • Applications Dewatering
  • Motor 2 Pole
  • Solids Handling Size 1/4–1/2”

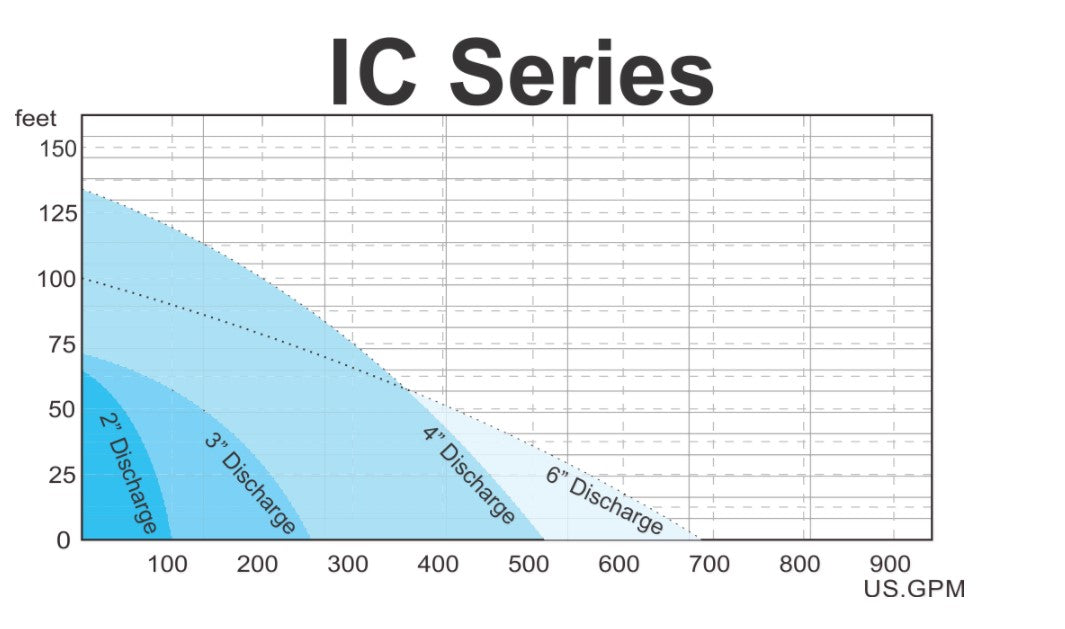

  • Max Head 136 Ft.
  • Max Flow 690 GPM
